Math Teachers: Raid the Physics Supply Closet!

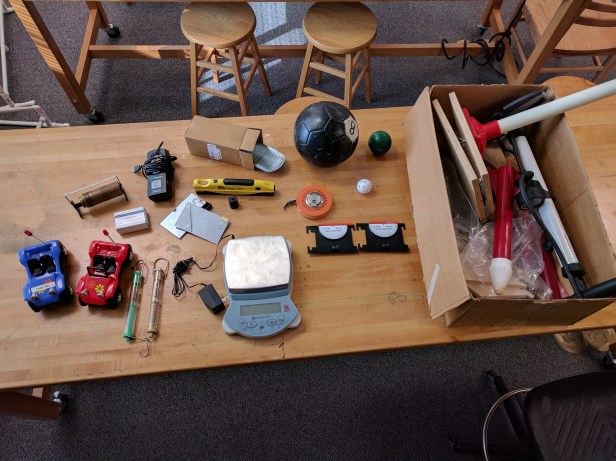

IMG_20170725_181145

Physics teachers are just math teachers with better toys.

I gave this talk at Twitter Math Camp 2017 in Atlanta.

Outline of this talk:

  1. OMG, data!
    • (Materials that) Generate Linear Data
    • Generate Quadratic Data
    • Generate Radical Data
    • Trig Ratios & Functions
  2. Physics resources
  3. The #PhTBoS & how they approach teaching

Generate Linear Data

Tumble Buggies


What this is: a toy car that runs at constant velocity. Pro-tip: With a fairly easy hack, you can slow them down so that you can have different constant velocities.

How it’s used in physics: Sample video. When we introduce the students to constant velocity motion, we use the buggies to get them thinking about motion in terms of position and time. We’ll create graphs, data tables, and compute velocities. In my class, I like to set two teams head-to-head to predict a collision location. I provide the starting points on a number line. Pro-tip: Lay down pennies to mark the location at one second intervals.

How it can be used in math: I love to have students plot the Tumble Buggy motion using Desmos — I doubt your physics teacher is using Desmos. Warning! It’s gonna be too easy to step on your physics teacher’s toes with these — if they have the buggies, they use them for the same stuff you would, too.  Pro-tip: get a metronome app for your phone so that you can easily mark equal time intervals for observing motion.

Knots on a Rope

(all the love to Steph Reilly, @reilly1041, for this idea)

What this is: a piece of rope at least 3 meters long.

How it’s used in physics: Tie an overhand knot in the rope and measure the new length. Collect data on number of knots in rope vs. length of rope. Plot length of rope vs. number of knots. Pay particular attention to the meaning of the y-intercept and slope.

How to use it in math: Please take this idea wholesale. It fits great in math class.

Motion Detectors

What this is: a sonic rangefinder that works by sending out high-pitched sound to locate the distance to an object. Sampling rates are pretty high, maybe 30 Hz, so you can track moving objects. Combined with software, the motion detector can produce graphs of position vs. time, velocity vs. time, and acceleration vs. time.

How it’s used in physics: Early in a course, students generally study how position, velocity, and acceleration are related. Students will sometimes perform graph matching labs where they’re given a graph and must move their own bodies in front of a motion detector to generate a matching graph. Sometimes, the motion detectors will come out again with carts that can roll down inclined planes and again with freely falling objects that fall down toward the detector.

How it could be used in math: The motion detector pairs nicely with Graphing Stories.

Inclined Plane

What it is: a track with grooves for carts to roll in (carts optional).

How it’s used in physics: all sorts of motion labs. This is quintessential physics equipment that nearly all labs will have in the closet. In a pinch, I’ve used wood molding purchased inexpensively at a home improvement store.

How you could use it in math: Get a marble or ball bearing. Release it from somewhere on the ramp and measure where it comes to rest. Repeat with a new starting point. Repeat.

Generate Quadratic Data

Motion Detectors

How it’s used in physics class: Be careful! Drop a ball so that it falls directly over the motion detector. We’ll put that data on a velocity vs. time graph. The slope of that graph acceleration (Δv/Δt). We’ll calculate the acceleration due to gravity. Some teachers might then switch to objects with significant air resistance but that’s rare.

How you could use it in math: Do the same experiment — drop a ball toward the detector. This time, though, look at the position vs. time graph. The object is accelerating. You’re gonna get a nice quadratic plot.

Video Analysis

What it is: software that pulls position and time data from videos. Tracker is free. Logger Pro is a Vernier product that costs money but your school may already have a license.

How it’s used in physics: Can do anything a motion detector can but without buying dedicated hardware. I like to have students film throwing a projectile.

How you could use it in math: Especially if your physics teacher isn’t using video analysis, this is a fun tool for generating position vs time graphs.

Generate Radical Data

Pendulums (Pendula?)

What it is: a string/rope with a weight at the end. Grab a chemistry ring stand, some string, and a mass from the physics lab.

How it’s used in physics: most notably, pendulums come out when we’re heading into learning about waves. We want students to understand the idea of a period (of time) for an oscillation. Fun fact: students never really believe that the mass on the end of a simple pendulum has no effect on the period. The period of a pendulum’s swing is a radical function that depends on the length of the string only.

How you could use it in math: Set up a pendulum and collect data on length of string and period. Plot it. Bam! Now, I love a good function transformation, so this might be fun to play with a function stretch.

Trigonometric Ratios & Functions

Angle Indicator

What it is: a protractor and a plum bob, often designed to attach to a track, to measure the angle of tilt. Can easily be made with a straw and protractor. I also have used a phone app (iHypsoLite is one of several).

How it’s used in physics: to measure the angle of a track.

How you can use it in math: Go outside and measure the height of the flagpole, height of the school, or height of the football goalpost.

Force Table

What it is: a set of masses that can be hung over the edge of a table, marked off with angle measurements. These strings make visible force vectors.

How we use it in physics: In the study of two dimensional force-balancing, we haul these tables out and set up equilibrium scenarios. Lots of possibilities here but my favorite is “what force will bring this system into equilibrium?”

How you could use it in math: OMG, vector addition! Dudes, just use this the same way we do in physics. Have a chat with your physics teacher that you’re not stepping on their toes by borrowing the equipment, though.

Physics Resources We’ll Let You Use

We like to share as much as the #MTBoS does, so I asked the physics teachers if I could share these with you. They said yes:

  • Frank Noschese’s Physics Lab Modeling resources from NCTM15.
  • PhET simulations: Most of what you’ll want for algebra is under motion and for trigonometric functions is under waves. Ooh, there is a math section though I’ve never explored it.
  • Direct Measurement Videos: This guy (Peter Bohacek, @bohacekp) up in Minnesota put together a video library and activity guides for a host of physics concepts. The cool bit is that each contains on-screen tools for taking all necessary measurements.

The #PhTBoS

The physics teachers on Twitter may not be as large as the math teacher group, but we make up for it in enthusiasm. Seriously, here are some of the most helpful folks I know, regardless of content area. If you’re looking for a hands-on activity to do in math class but don’t know what lab equipment might already exist on campus, hit one of us up.

  • Steph Reilly (@reilly1041) — was at #TMC17. Steph has taught physics and math and helped me prep this talk. She’s done many physics-y things in her math classes.
  • John Burk (@occam98) — was at #TMC17 and is on Twitter 24/7, I suspect. John has taught math, so can understand where you’re coming from.
  • Frank Noschese (@fnoschese) — he pretty much invented the 180 blog and his archives will give you plenty of ideas. Probably the most helpful person on Twitter, too.

Generally, physics teachers on Twitter are left of center on their pedagogies:

  • We tend to eschew long labs heavy on procedures (“cookie-cutter labs”) for shorter, open-ended questions (“single-sentence labs“).
  • A good number of us teach via modeling. There’s a Modeling Physics course some have taken, which emphasizes multiple representations, student construction of knowledge, and scientific argumentation. The Modelers use #modphys on Twitter. (My take as someone who dabbles on the fringes of this group.)

Meanwhile, the majority physics teachers probably teach the way you learned physics. A few notes about these folks, so that you can make friends and borrow equipment:

  • Be careful that you’re not using the exact idea they tend to teach, especially if you’ll be stealing their thunder.
  • Ask if they have ideas for experiments that generate a certain type of data. We don’t really think of the content that way but can totally pull out a phenomena that will give you a nice rational function graph if you need it (I’m looking at you resistors in parallel).

Good luck raiding the physics supply closet! And if you find some equipment you can’t identify, Tweet it out to me and #iteachphysics — someone will be able to tell us what it’s for.
